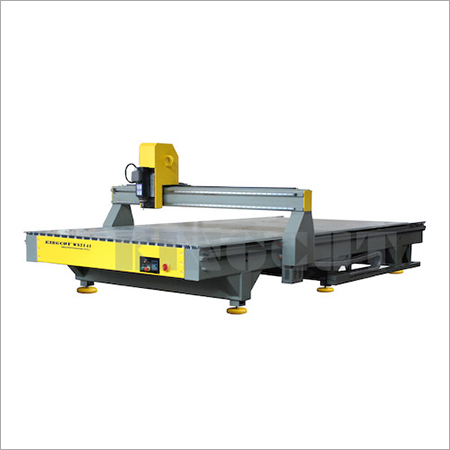

3D KingCut WS2141 CNC Engraving Machine

3D KingCut WS2141 CNC Engraving Machine
3D KingCut WS2141 CNC Engraving Machine
Send Inquiry
Product Code : 3D KingCut WS2141
Price And Quantity
  • Minimum Order Quantity
  • 1 Unit/Units, ,
  • Price
  • 4500 USD ($)
Product Description

Technical Specification

Model

WS2141

X.Y axis motion

2100mm (X)x 4100mm (Y)

Z axis motion

170mm

Table size(X/Y)

3100mm (X)x 4540mm (Y)

Drive System

X, Y axis : Rack and Pinion / Z axis : Ball Screw

Max.Moving Speed

15M/min

Max.Engraving Speed

12M/min

Max.Feeding Height

180mm

Repeatability

0.05mm

Driving System

AC Servomotor

Resolution

0.00727mm

Controller

VDS III (DSP 160MHz)

File Type

HP-GL, G-Code

Computer OS

Windows98/2000/XP

Power Supply

3 Phase 380V/50Hz

Spindle

3500WAir cooling

Spindle rotary speed

0 to 18000 rpm

External Dimension

/ mm (W)x / mm (D)x / mm (H)

Weight

/ kgs

Operating Temperature and humidity

5 to 35 °C / 35 to 70% (non-condensing



Trade Information
  • Supply Ability
  • 100 Units Per Month
  • Delivery Time
  • 7 Days
